Vertical Conveying Solutions
Vertical Conveying System
Synergy Industrial Services Pvt. Ltd. (SISPL) provides specialized Vertical Conveying Systems designed for heavy-duty industrial applications where space is limited and bulk materials must be moved at steep angles. These systems are currently operational in high-demand environments like Tata Steel Kalinganagar, NTPC, and Larsen & Toubro facilities.

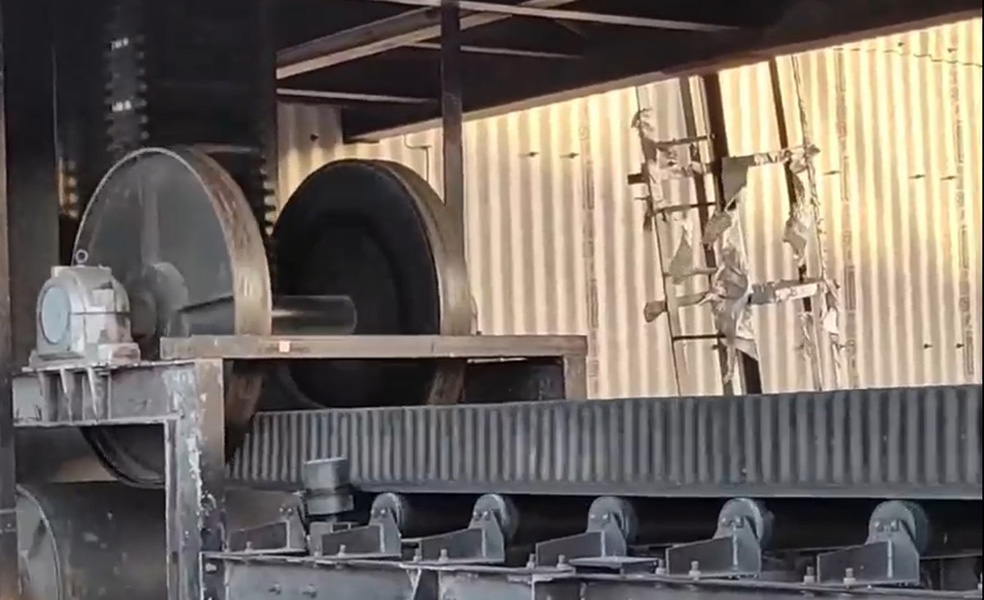

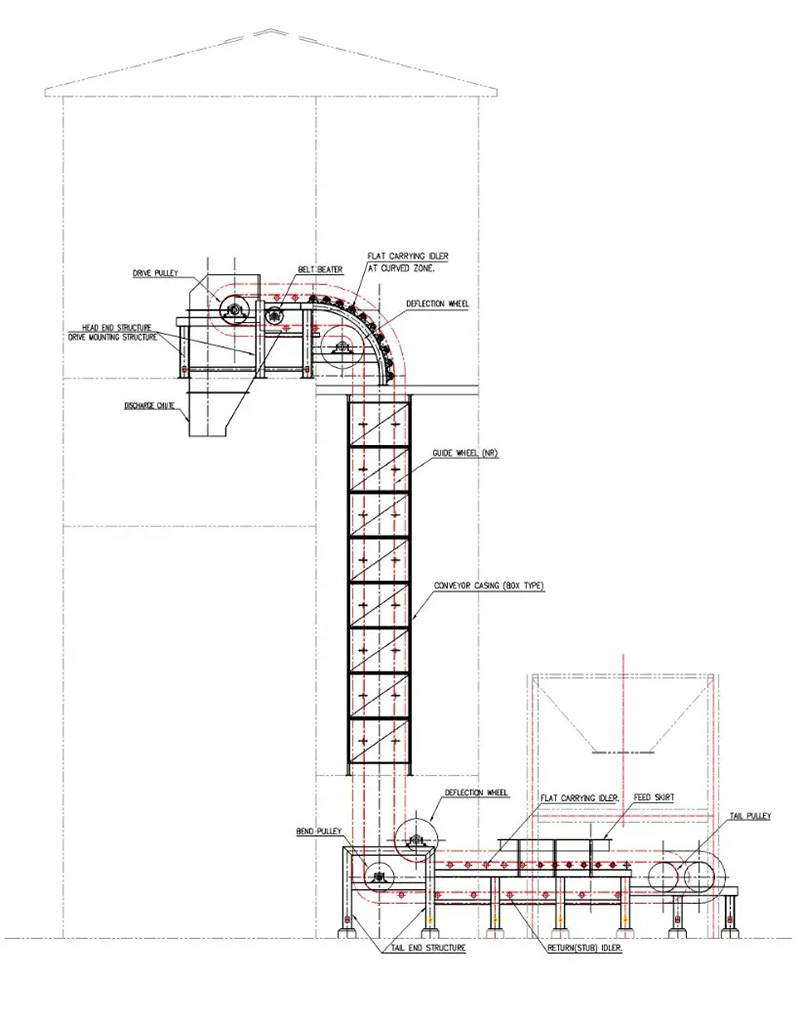

Steep Angle Conveyor
Vertical conveying of Bulk Material at a considerable height. Capable of conveying up to 90 degree. Significant less spacerequired to commission over the standard conveyors.
- Vertical conveying of bulk material at considerable heights.
- Capable of conveying at angles up to 90 degrees
- Significantly less space is required to commission compared to a standard conveyor
- Mother belt is either fabric with steel reinforcement or steel cord.
- Sidewall and cleats are vulcanized with the mother belt to suit the design and capacity.
Components
- Belt with sidewall & cleats.
- Specially designed Pulley, Idler and Stub Idler.
- Deflection wheel
- Beater pulley
- Guide wheel
- Technological structure
- Drive – motor and gearbox
- Safety switches
Accessories
- Dribble Conveyor
- Sidewall & cleat vulcanizing press

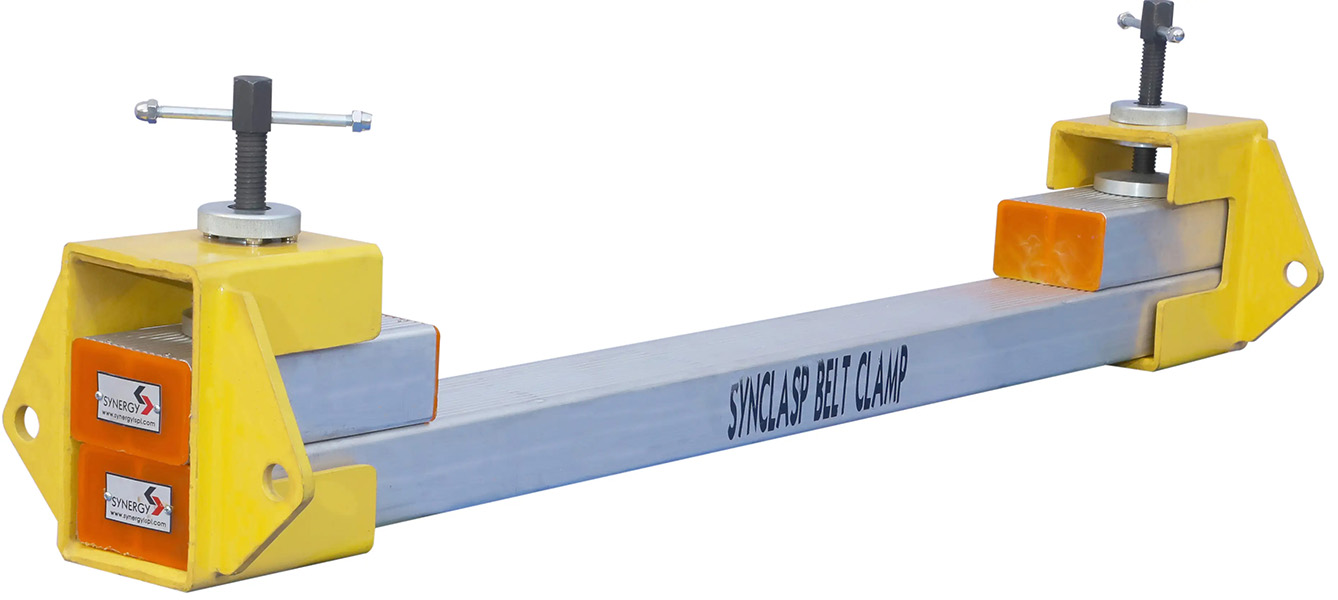

- Belt clamp

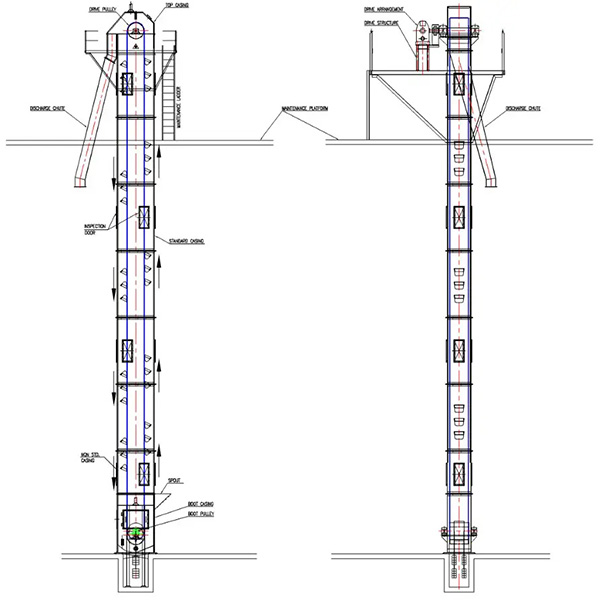

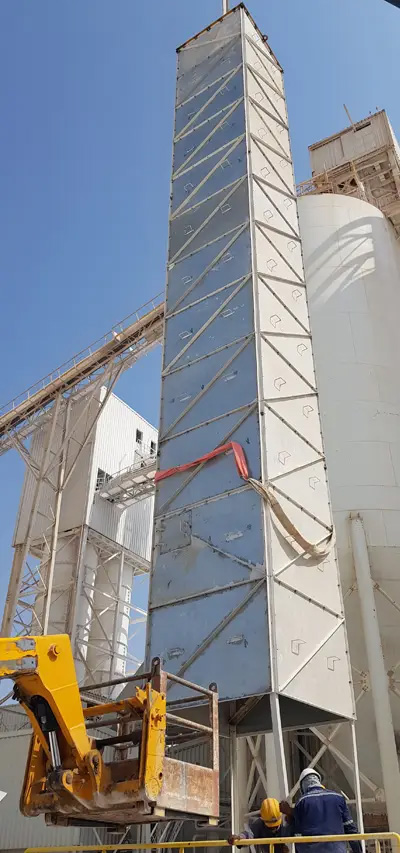

Belt Bucket Elevator
Vertical conveying of Bulk Material at a considerable height. Significant less spacerequired to commission over the standard conveyor. Base belt is either fabric with steel reinforcement or steel cord.
- Vertical conveying of bulk material at considerable heights.
- Significantly less space is required to commission compared to a standard conveyor.
- Base belt is either fabric with steel reinforcement or steel cord.
- Fabricated or cast buckets are fixed to the base belt using high-tensile fasteners to suit the design and capacity.
Components
- Belt
- Buckets
- Drive Pulley and Boot Pulley
- Screw Take-Up
- Enclosure
- Drives
- Safety switches
Accessories
- Mechanical Belt Clamp with Fasteners.
